Bar Code Print and Apply

Bar Code Print and Apply

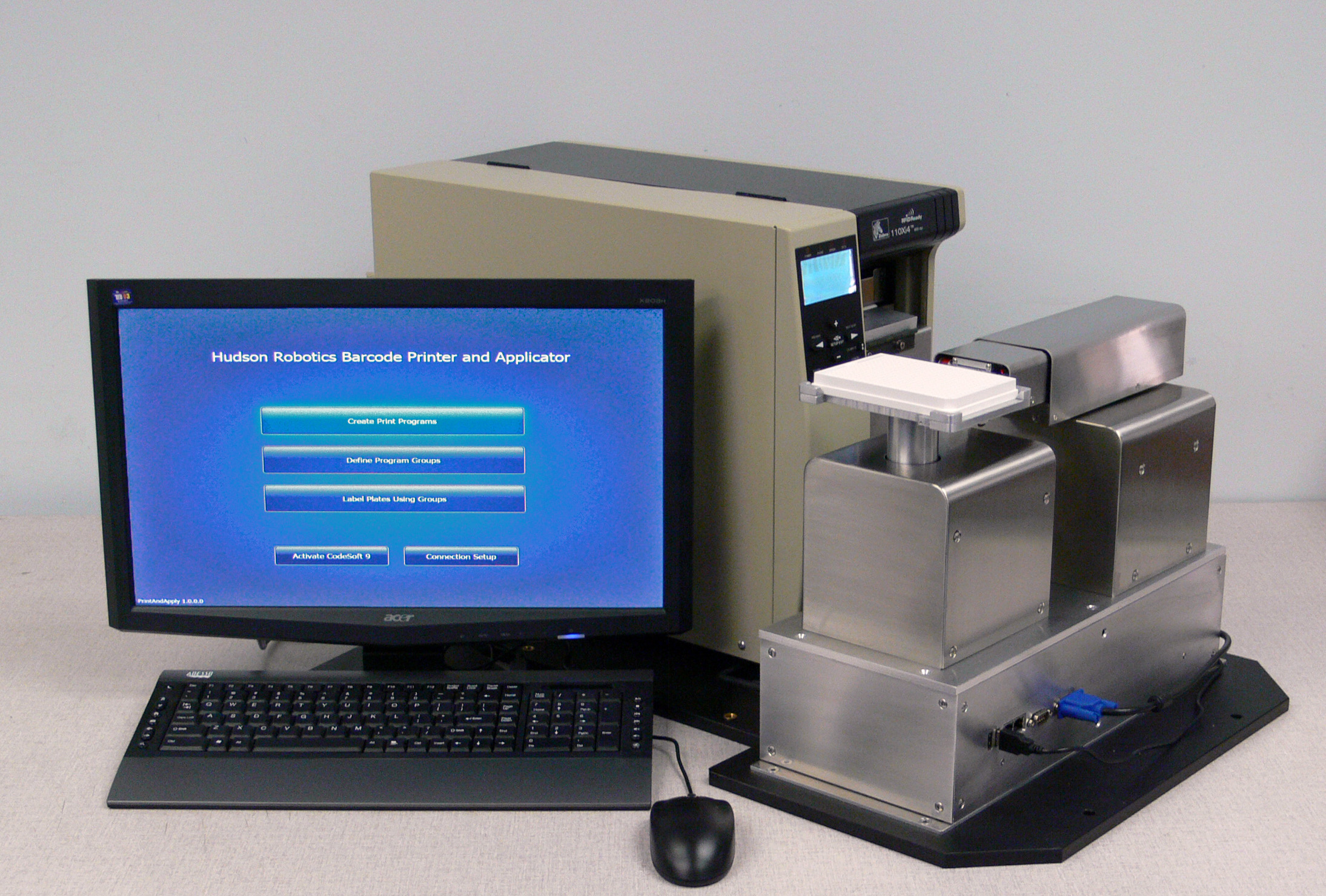

Hudson‘s PA1000 Print & Apply is a high performance automated barcode labeling system. It prints multiple format barcode labels on any SBS footprint plates. The PA1000 prints 1D, 2D and/or human readable text on 1, 2 or all 4 sides of a plate.

Easy to use software allows for anyone to set up a run. Print 1 plate or a 1000 using the scalable stacker system. The PA1000 is an ideal choice for any budget and space. The PA1000 can be used manually loaded or load the optional stackers and run the system in any number of batches.

The system can be expanded to 15+ stackers holding over 350 plates with lids or 420 shallow well plates without lids. Configure the right number of stackers for your needs and budget. Additional stacking options are available allowing for up to 1000 plates to be processed per run.

Microplate Handling Bar Code Print and Apply

The PA1000 is supported with Hudson’s PlateCrane™ robotic arm and SoftLinx™ scheduling software. SoftLinx offers ready to go interfaces to 150+ laboratory instruments allowing the PA1000 to be integrated as the first stop of an automated process.

With the PA1000 and SoftLinx the barcode will be applied as defined in the easy to use software, the initial data recorded, the plates tracked through the assay process and results delivered with the plate data. Eliminate the need to manually move the plates from stacker to stacker or loading a database. Barcode labeling can be done within the work cell process saving time and money.

Already have barcodes on the plates? Need to replace them with new labels? Need to add human readable text? The PA1000 can read the existing barcodes and print and apply a duplicate or text label on any side of the plate.

Using 2D barcodes for some applications? The PA1000 can read the existing 1D barcode then print & apply a label with the 2D barcode on another side of the plate. SoftLinx tracks which side has which barcode.

The PA1000 is as reliable as it is versatile. Print 1000s of labels without incident. Adjust the position of the label on the plate to meet individual needs. Whether high throughput use or convenient small scale data tracking the PA1000 fits any budget and application.

  • Features
  • Specifications

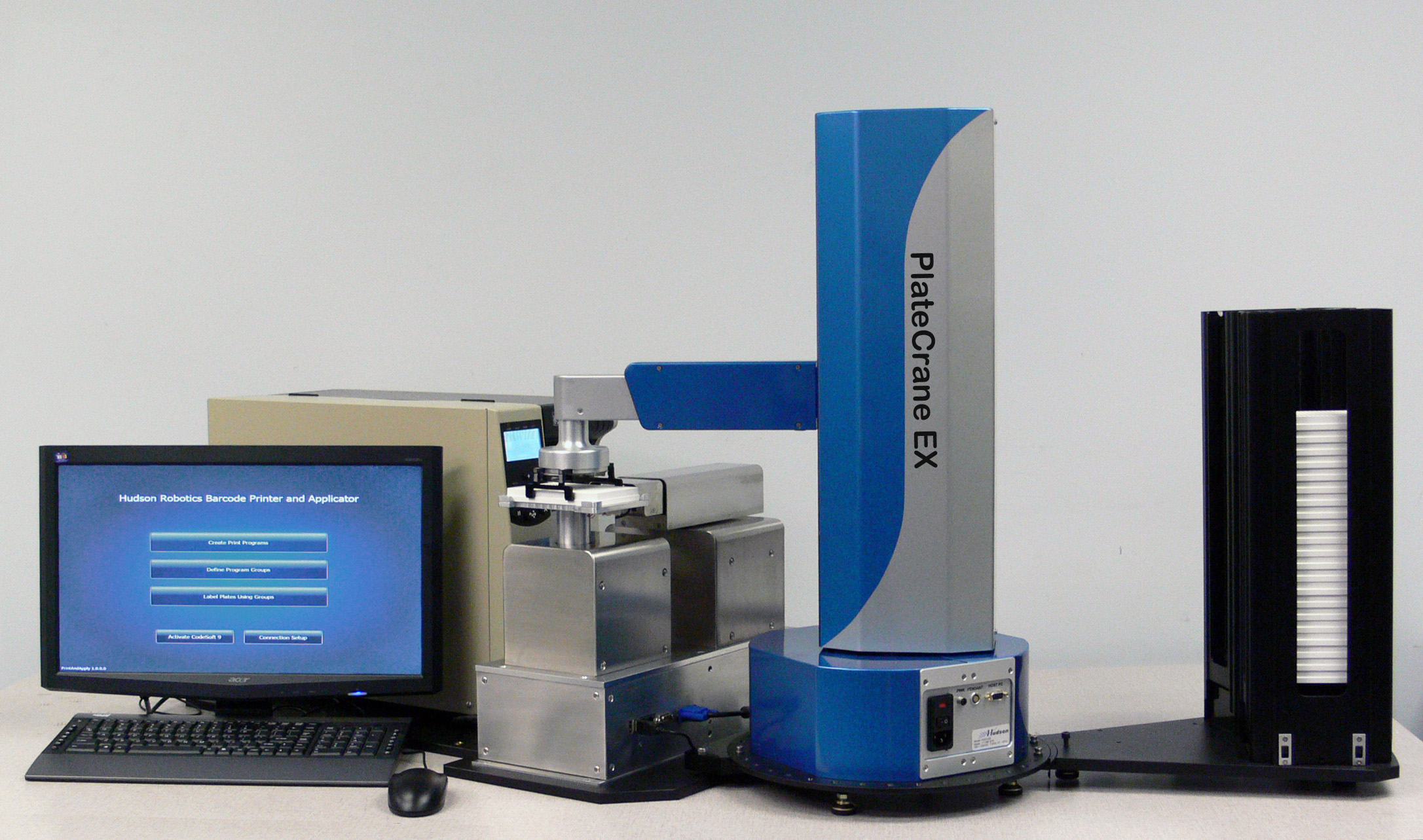

When configured with a PlateCrane with rotating gripper, the microplate labeling workcell allows labels to be applied to any or all sides of a microplate. This picture shows a close-up of the PlateCrane rotating gripper, the Plate Nest, and the microplate label applicator. A 600 dpi printer provides the resolution needed for reproducible printing on labels sized for microplates. The capability to use labels up to 3.3″ wide allows use of longer bar codes and the printing of human readable text next to the bar code.

The Print & Apply Workcell offers individual laboratories Walkaway Automation for labeling microplates. Depending on the configuration, up to 420 microplates can be loaded and then automatically labeled. The potential inaccuracies (as well as operator tedium) of manual labeling are therefore avoided.

  • 600 dpi Zebra printer provides the best resolution available
  • Compatible with a wide variety of microplate label types and sizes available
  • Print and apply blank microplate labels “on-site”, or feed and apply preprinted color labels
  • Compatible with all bar code formats
  • Positive tamping applicator provides reliable application within +/- 0.020″
  • Compatible with standard and deep well microplates
  • Walkaway automation of printing and applying for up to 420 microplate labels
  • Typical throughput of 100 microplates/hour (single label)
  • Handles SBS standard footprint microplates

Size (H x W x L): 16” x 19” x 32”

Weight: 80lbs

Pneumatic operation: 80 – 100 psi; 2 CFM clean/dry air

Power: 110v or 220v; 100 VA

Printer: 600 dpi Zebra 96XiIII printer

Capacity: Up to 420 microplate capacity with PlateCrane EX
