RSH-4000™ Adhesive Microplate Sealer
Hudson’s RSH-4000™ Adhesive Microplate Sealer is the solution for high throughput automated microplate sealing. It is the only plate sealer with an integrated, in-line plate stacker and delivery system. It offers long walkaway times, as well as direct integration to ELISA and cell-based systems. Provided with a wide selection of sealing materials, including aluminum foil, polyethylene, clear and gas-permeable, the RSH-4000 is ready made for automated workcells.

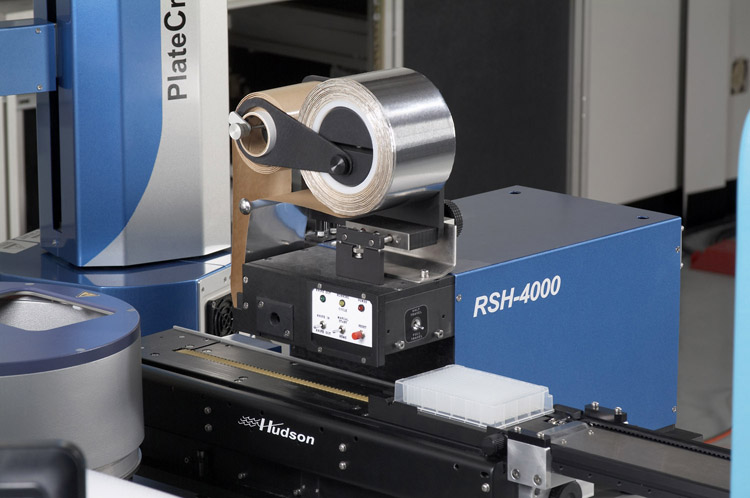

Adhesive Microplate Sealer Automated Microplate Sealing Plate SealerThe RSH-4000 eliminates the need to pick-and-place plates in order to automatically load the sealer. It operates as an in-line component of Hudson’s LabLinx track system to seal and restack plates without ever having to lift a single plate! This eliminates the need to “teach” or calibrate pick-and-place positions as well as any chance of spilling or mishandling of plates. This in-line operation also means faster plate processing: more plates per minute than any other plate sealer on the market.
The RSH-4000 is available with Hudson’s StackLink plate stacker for a seamless automated solution to high-volume plate sealing needs. It can be easily integrated with a 96-well pipettor or with Hudson’s micro10 in-line bulk liquid dispenser for unprecedented fill-and-seal throughput. SoftLinx® software makes it easy to interface the RSH-4000 with other automated instruments for seamless automated control.
The RSH-4000 is ideal for sealing cell growth culture plates with gas permeable membrane seals. It has many uses in applications involving:
- bacterial cultures
- cell growth and storage
- protein expression
- compound storage
- protein crystallography
- -80 deg.C storage.
The RSH-4000′s extensible track and stacker system provides the fastest, highest throughput system available anywhere for demanding ELISA applications, and for anywhere seals must be placed rapidly and reliably. Integrates with high-speed automated colony pickers to quickly seal and protect cell growth culture plates . Offers direct track link-up to automated incubators for rapid, reliable sealing and incubation.
The RSH-4000 provides the modularity and flexibility needed by researchers who require their plate sealer to adapt to many different protocols:
- Fully automated with integrated stacker and 240-plate storage capacity
- Integrated with laboratory robot arms for use in small workcells
- With Hudson’s LabLinx track system, can pass plates through to other instruments in either direction
- Accommodates most plate configurations, heights and compositions
- Compatible with most chemicals (including DMSO)
- Integrated sensors ensure proper positioning and pressure
- RS-232 interface with simple, ASCII command set
Wide variety of sealing materials, including:
- Gas permeable
- Aluminum foil
- Optically Clear Polyolefin
- Pierceable Polyethylene
Additional Outstanding Features:
- Seals withstand temperatures from -80°C to 110°C
- Adjustable tape application pressure
- Automatic anti-jamming logic
- Programmable tape-edge overhang at front and rear of plate
- Tape roll supply sensor automatically alarms system when low
The RSH-4000 serves a wide variety of laboratory applications at an extremely attractive price.
Electrical: 100-240 VAC / 50-60 Hz
a. With Stacker: 48″W x 15″D x 27″H (top of stacks)
b. Standalone: 24″W x 15″D x 20″H (top of tape roll)
Weight: (weights are approx.)
a. With Stacker: 83 lbs.
b. Standalone: 43 lbs
